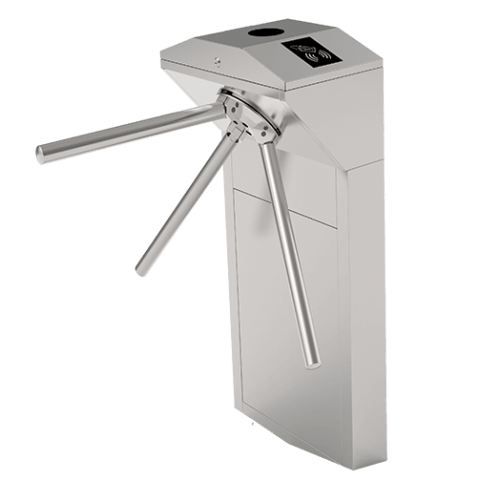

TS1022 Pro

TS1022 ProTripod Turnstile (w/ controller and combination of fingerprint & RFID reader)

• SUS304 stainless steel housing
• Bi-directional tripod turnstile with arm drop function
• LED pictograms for intuitive user experience and high throughput in both directions
• High quality at an affordable price
• Low power consumption
• Wide range of accessories
• Easy and simple installation process
• Easy to maintain and monitor

SKUts1022-pro Category Tag
Power requirements AC110V/220V, 50/60Hz
Power consumption
Running



Standby



18W



6W



Working temperature -28 °C – 60 °C
Working humidity 5%-80%
Working environment Indoor/Outdoor(if sheltered)
Speed of throughput
RFID



Fingerprint



Maximum 30/minute



Maximum 25/minute



Lane width(mm) 500
Footprint(mm*mm) 520*810
Dimension(mm) L=520, W=310, H=1010
Dimension with packing(mm) L=570, W=365, H=1080
Net weight(kg) 36
Weight with packing(kg) 50
LED indicator Y
Cabinet material SUS304 Stainless Steel
Lid material SUS304 Stainless Steel
Barrier material SUS304 Stainless Steel
Barrier movement Rotation
Emergency mode Y
Security level Medium
Mean cycles between failure (MCBF) 1 million
Options/Accessories Counter, SUS316 Cabinet and Lid, Remote Control
