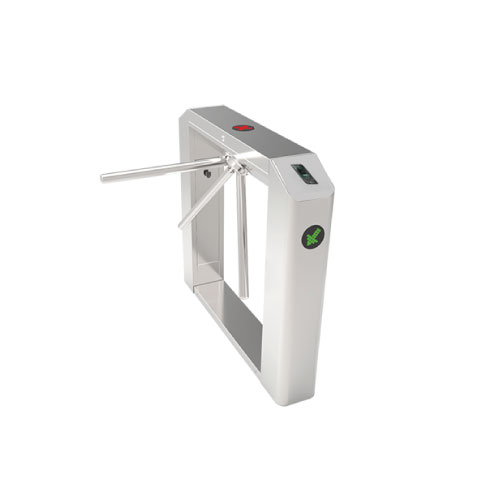

TS202
Tripod Turnstile: controller and combination of fingerprint & RFID reader.
Working Environment: Indoor/outdoor
Cabinet material : SUS304 Stainless Steel
Emergency Button Input: Yes
Dimension: L=1200, W=280, H=98
| Power requirements | AC110V/220V, 50/60Hz | |
| Power consumption | Running Standby |
18W 6W |
| Working temperature | -28 °C – 60 °C | |
| Working humidity | 5%-80% | |
| Working environment | Indoor/Outdoor(if sheltered) | |
| Speed of throughput | RFID Fingerprint |
Maximum 30/minute Maximum 25/minute |
| Lane width(mm) | 500 | |
| Footprint(mm*mm) | 785*1110 | |
| Dimension(mm) | L=1110, W=280, H=987 | |
| Dimension with packing(mm) | L=1175, W=370, H=1070 | |
| Net weight(kg) | 42 | |
| Weight with packing(kg) | 48 | |
| LED indicator | Y | |
| Cabinet material | SUS304 Stainless Steel | |
| Lid material | SUS304 Stainless Steel | |
| Barrier material | SUS304 Stainless Steel | |
| Barrier movement | Rotation | |
| Emergency mode | Y | |
| Security level | Medium | |
| Mean cycles between failure (MCBF) | 1 million | |
| Options/Accessories | Counter, SUS316 Cabinet and Lid, Remote Control | |
