ZKP8001
Thermal Receipt Printer .
| Model | ZKP8001 | |
| Printing | Print Method | Direct Thermal Line Printing |
| Print Speed | 300mm/sec | |
| Print Command | Compatible with ESC / POS | |
| TPH | 100 km | |
| Interface | Optional | Serial / USB / Ethernet |
| Character | Font A | 12*24dots, 1.5(W)*3.0(H)mm |
| Font B | 9*17dots, 1.1(W)*2.1(H)mm | |
| Chinese | 24*24dots, 3.0(W)*3.0(H)mm | |
| Alphanumeric | ASCII 12*24dots | |
| Barcode | 1D | UPC-A / UPC-E / JAN13(EAN13) / JAN8(EAN8) / CODABAR / ITF /CODE39 / CODE93 / CODE128 |
| 2D | QR CODE | |

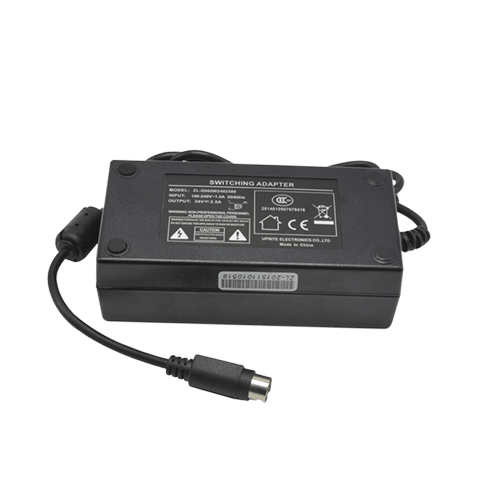

| Power Supply | Output | DC 24V/2.5A |
| Cash Drawer | DC 24V/1A | |
| Paper | Paper Type | Thermal Receipt Paper |
| Paper Width | 79.5±0.5mm ( Print Width 72mm ) | |
| Paper Thickness | 0.060~0.08mm | |
| Roll Diameter | 80mm | |
| Paper Cutter | Auto Cutter: Full or Partial Cut | |
| Physical Environment | Temperature | 0-45℃ |
| Contrast Humidity | 10%-80%RH | |
| Weight | 2kg | |
| Dimension | 190*145*145mm (L*W*H) | |
| Software | Driver | Windows 2000, Windows 2003, Windows XP, Windows Vista, Windows7, Windows8, Windows10, Linux, Compatible with EPSON, SAMSUNG driver |
