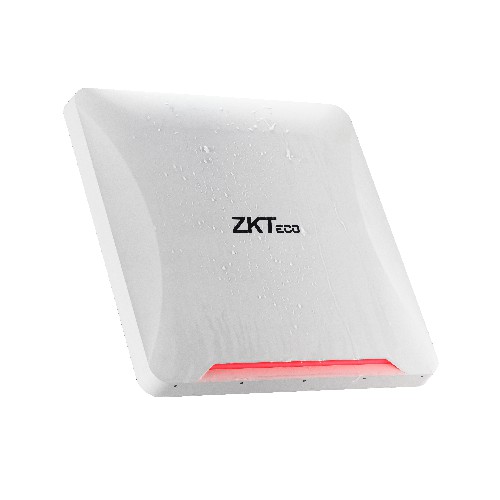

UHF10 Pro

Contrôle d’accès UHF
Hardware Platform : ZMM220
Antenna Gain 12dBi
Dim : 445*445*67.5

uhf10-pro

Téléchargez Fiche Technique

Dimensions 308.5 * 308.5 * 67.5
Weight 1.8kg
Power 1.2 – 4.2W
Frequency E: 865MHz – 868MHz F: 902MHz – 906MHz (adjustable)
Communication Interface Wiegand, RS485, USB configuration parameters (Wiegand, RS485 requires one of two options)
Interface Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Working Mode Read Always (Default) and Read by Trigger
Output Power 19dBm – 30dBm
Protection Level IP66
Working Voltage DC 9 – 15V
Storage Temperature and Humidity -20°C – 80°C, < 85%
RS485 Communication Optional baud rate (9600, 19200, 38400, 57600, 115200), the default is 115200
Dimensions

308.5 * 308.5 * 67.5
Weight

1.8kg
Power

1.2 – 4.2W
Frequency

E: 865MHz – 868MHz F: 902MHz – 906MHz (adjustable)
Communication Interface

Wiegand, RS485, USB configuration parameters (Wiegand, RS485 requires one of two options)
Interface Protocol

EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Working Mode

Read Always (Default) and Read by Trigger
Output Power

19dBm – 30dBm
Protection Level

IP66
Working Voltage

DC 9 – 15V
RS485 Communication

Optional baud rate (9600, 19200, 38400, 57600, 115200), the default is 115200
