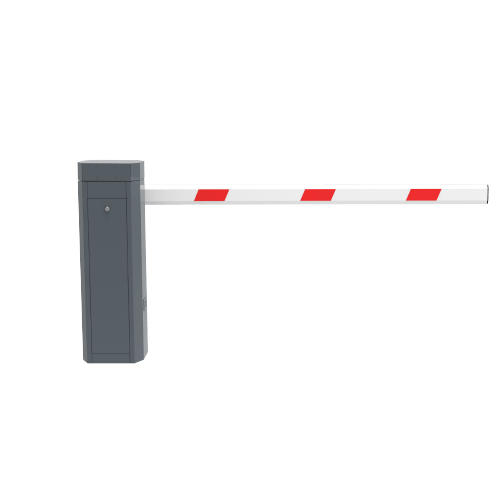

PB3060R
• Compact design, convenient for packing and lowering delivery cost;
• ZK designed rolling pressure spring technology, extending product life;
• Boom can be raised and lowered smoothly and steadily;
• Convenient for maintenance and customization;
• Simple installation – just fix the barrier gate on floor and connect it to electricity.
| Technical Specifications | |||
| Model No. | PB3010L/R | PB3030L/R | PB3060L/R |
| Lane Width | 3M | 4.5M | 6M |
| Opening / Closing Time | 1.8S | 3S | 6S |
| Supply Voltage | 110V AC or 220V AC | 110V AC or 220V AC | 110V AC or 220V AC |
| Power Consumption Max. | 200W | 200W | 200W |
| Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Cabinet Material | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel |
| Boom Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Base Frame | Cast Iron | Cast Iron | Cast Iron |
| Temperature Range | -20°C~ 60°C | -20°C~ 60°C | -20°C~ 60°C |
| Humidity Range | ≤90% | ≤90% | ≤90% |
| Ingress Protection | IP54 | IP54 | IP54 |
| Housing Dimensions (W x D x H) | 300 * 280 * 980（mm） | 300 * 280 * 980（mm） | 300 * 280 * 980（mm） |
| Packing Dimensions (W x D x H) | 460 * 420 * 1150（mm） | 460 * 420 * 1150（mm） | 460 * 420 * 1150（mm） |
| Net Weight (Without Boom) | 56KG | 56KG | 56KG |
| Gross Weight (Without Boom) | 72KG | 72KG | 72KG |
