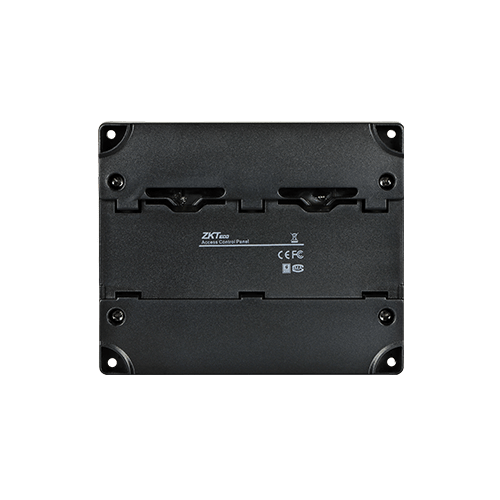

C2-260
Nbr of Doors Controlled : 2
Nbr of Auxiliary Inputs : 2
Nbr of Auxiliary Outputs : 2
Nbr of Readers Supported : 4
Card Capacity : 30,000
Log Events Capacity : 200,000
Communication : TCP/IP, RS-485
| Model | C2-260 |
| Number of Doors Supported by Default | 2 |
| Number of Auxiliary Inputs | 2 |
| Number of Auxiliary Outputs | 2 |
| RS485 Extension Port | 1 |
| RS485 Reader Port | 1 |
| Number of Readers Supported | 4 |
| Types of Readers Supported | RS485 card reader, Wiegand reader (WR485) |
| DM10 (Single-Door Extension Board) (Optional) | Max. 8 |
| AUX485 (RS485-4 Aux. IN Converter) (Optional) | 2 |
| WR485 (RS485-Weigand Converter) (Optional) | 4 |
| Card Capacity | 30,000 |
| Log Capacity | 200,000 |
| Communication | TCP/IP, RS485 |
| CPU | 32-bit 1.0GHz |
| RAM | 64MB |
| Power | 9.6V – 14.4V DC |
| Dimensions (L*W*H) | 116.47*96.49*31.40 mm |
| Operating Temperature | -10°C to 50°C / 14°F to 122°F |
| Operating Humidity | 20% to 80% |
