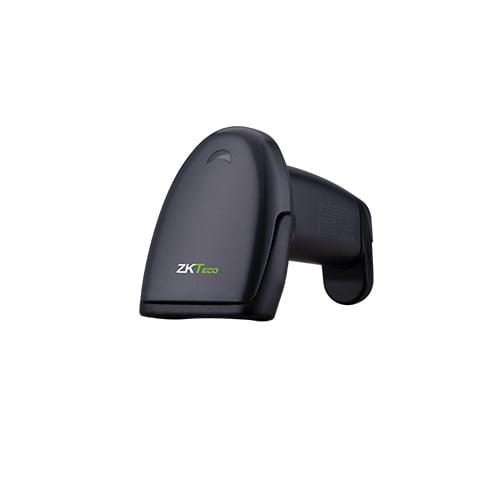

ZKB101  are 1D barcode scanners. They support multiple data transmission modes and the optional automatic sensing mode. They also support multiple keyboard languages and secondary development of various keyboard languages.

Model ZKB101
Type 32-bit Wired laser barcode scanner
Barcode Types EAN / JAN-8; EAN / JAN-13; UPC-A; UPC-E; CODE-128; CODE-93; RSS-Standard;
Limited; Expanded; CODE-39; Inter-Leaved 2/5; Standard 2/5; Matrix 2/5;
Industrial 2/5; China-Post; MSI; MSI-PLESSEY; CODE-BAR; CODE-11 etc.
Power Voltage DC 3.5-5.5V DC 4.5-5.5V
Operating Current 50mA 80mA
Standby Current 25mA 55mA
Maximum Peak 100mA 120mA
Ultra-low Power Consumption < 1mA (standby) (Optional) < 1mA (with sleep mode)
Interface USB-HID Supporting USB interfaces later than USB1.1
UART baud rate range 1200-115200 bps
Transmission Rate Support low-speed, high-speed, and full-speed three data transmission modes.
Light Source Wavelength Red light of 650nm±10%
Power < 20mW
Depth of Scan Field 0-550 mm (1.0 mm density barcode test value)
DoF of high-density long bar codes /
Scan Angle vertical: 70°; horizontal: 70°
Print Contrast >=25%
Precision >=3mil
Decode Speed 300 times/second
Decode Error Rate 1/8 million
ESD Rating Contact Discharge: 9 KV, Air Discharge 15KV
Work Environment Operating Temp. -10°C ~  50°C
Storage Temp. -20°C ~  60°C
Operating Humidity 5% ~95%RH (condensing)
Anti-knock 1.8m free fall to test
Dimension  139.5*71.1*89.9mm (L*W*H)
Certifications CE, FCC, ROHS, IP65, IEC60825
